Intel D945GCPE (Intel 945GC)
Author:
Date: 20.09.2007 |
|
BIOS
The BIOS of Intel D945GCPE is based on the Intel BIOS version.
The section in charge of memory operation settings offers the following kit of timings:
The following parameter is in charge of setting the memory operating frequency:
Now move on to the section to do with the system monitoring.
The board displays the current temperatures for the CPU and the system, voltage levels, as well as rotational speeds of both the fans.

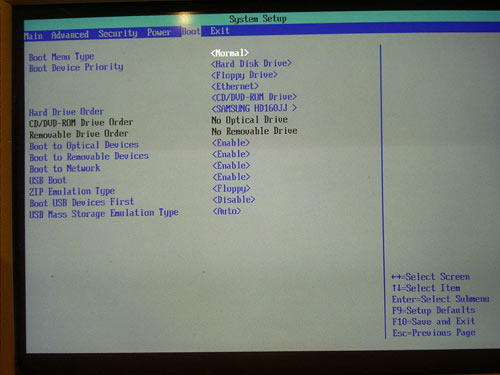

To give you a complete view, we're bringing in so,e screen shots of other BIOS sections:
On the last image, we see the "Event Log" section which appears to be some sort a log of system events. Also, note the features for language selection:
There is also a parameters that controls the capacity of the system memory allocated for the needs of the integrated video core.
Overclocking and stability
The board does not support any overclocking features, except the "Burn-In" section which. according to the idea of the engineers at Intel, is meant "to check the system stability".
Therefore, the power converter is made on the base of a 3-phase scheme and is aimed solely at the nominal operation. In the converter, there are four 1500 mkF and six 821mkF capacitors.
 |
